254 SMO Sheet ,Plate,coils Manufacturer in India

254 SMO Sheet ,Plate,coils Manufacturer, Supplier and Exporter in India

254 SMO Sheet ,Plate,coils, 254 SMO Sheet ,Plate,coils Manufacturer, 254 SMO Sheet ,Plate,coils Supplier and Exporter, 254 SMO Sheet ,Plate,coils Exporter

Sumer Metal Industries, headquarted in Mumbai, is a trusted manufacturer, supplier, and exporter of premium 254 SMO (UNS S31254 / 1.4547) stainless steel coils, sheets, and plates. Operating in full compliance with ASTM A240 / ASME SA‑240 standards, they offer hot-rolled and cold-rolled products with dimensions tailored to client needs. Their global clientele spans petrochemical, desalination, offshore, pulp & paper and power generation sectors, where high corrosion resistance is critical.

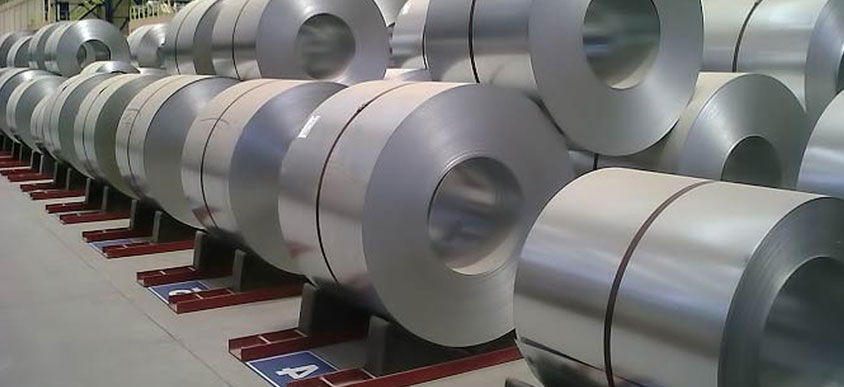

254 SMO Sheet ,Plate,coils

254 SMO (UNS S31254 / W.Nr. 1.4547) is a super-austenitic stainless steel known for its exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking. Developed for use in highly aggressive environments, especially those rich in chlorides like seawater and brine, 254 SMO combines high levels of chromium, molybdenum, and nitrogen. This combination gives it superior corrosion resistance compared to conventional stainless steels like 316L or 904L, making it a preferred material in industries such as chemical processing, desalination, offshore oil and gas, and pulp and paper.

254 SMO sheets, plates, and coils are widely used in the fabrication of heat exchangers, pressure vessels, tanks, marine components, and flue-gas cleaning systems. These products are available in a wide range of thicknesses, from thin foils and coils (as low as 0.02 mm) to heavy plates up to 100 mm thick. Surface finishes such as No.1, 2B, BA, mirror, and hairline are offered depending on the application, with widths ranging from 650 mm to 3000 mm and lengths up to 6000 mm or more.

254 SMO Sheet ,Plate,coils Specifications

Property Details
Material Grade 254 SMO
UNS Number S31254
W.Nr. (Werkstoff Nr.) 1.4547
Standards ASTM A240, ASME SA240, EN 10088-2
Available Forms Sheets, Plates, Coils, Strips, Foils, Blanks, Shim Sheets, Chequered Plates
Thickness Range 0.02 mm – 100 mm
Width Range 650 mm – 3000 mm
Length 2000 mm – 6000 mm (custom lengths available)
Surface Finishes No.1, 2B, 2D, BA, No.4, Mirror, Hairline, Embossed, Satin
Edge Condition Mill Edge, Slit Edge
Delivery Conditions Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled
Processing Services Cut-to-length, Shearing, Polishing, Laser/Plasma/Water Jet Cutting
Packaging Wooden boxes, Crates, Bubble wrap, Export-standard waterproof packing
Certifications EN 10204 3.1 / 3.2, Mill Test Certificate, NABL-accredited lab test reports

Chemical Composition of 254 SMO Sheet ,Plate,coils

Element Minimum (%) Maximum (%) Function / Role
Carbon (C) — 0.020 Low carbon minimizes carbide precipitation
Silicon (Si) — 0.80 Enhances oxidation resistance
Manganese (Mn) — 1.00 Aids in deoxidation and hot working
Phosphorus (P) — 0.030 Should be minimized to reduce brittleness
Sulfur (S) — 0.010 Low content for improved corrosion resistance and weldability
Chromium (Cr) 19.5 20.5 Provides corrosion resistance
Nickel (Ni) 17.5 18.5 Increases toughness, corrosion resistance, and ductility
Molybdenum (Mo) 6.0 6.5 Greatly improves pitting and crevice corrosion resistance
Nitrogen (N) 0.18 0.22 Increases mechanical strength and corrosion resistance
Copper (Cu) 0.50 1.00 Enhances resistance in reducing acids
Iron (Fe) Balance — Base element

SS 904L is a super austenitic stainless steel with low carbon content and high levels of nickel, molybdenum, and copper, giving it outstanding resistance to sulfuric acid, chloride-induced pitting, and stress corrosion cracking. Sumer Metal’s 904L coils exhibit excellent formability, weldability, and durability in harsh and corrosive environments. These coils are available in hot rolled (HR) and cold rolled (CR) forms and are used in fabricating heat exchangers, tanks, piping systems, and structural components.

Mechanical Property of 254 SMO Sheet ,Plate,coils

Property Typical Value Unit Description
Tensile Strength ≥ 650 – 690 MPa Maximum stress the material can withstand before failure
Yield Strength (0.2% offset) ≥ 300 – 310 MPa Stress at which permanent deformation begins
Elongation (in 50 mm) ≥ 35 % Ductility — ability to stretch without breaking
Hardness (Brinell) ≤ 223 HB Surface hardness — resistance to indentation
Modulus of Elasticity ~195 GPa Stiffness — resistance to elastic deformation
Density ~8.0 g/cm³ Mass per unit volume
Melting Range 1320 – 1390 °C Temperature at which the alloy begins to melt
Thermal Conductivity (at 20°C) ~14.5 W/m·K Ability to conduct heat
Specific Heat Capacity ~500 J/kg·K Heat required to raise the temperature by 1°C
Electrical Resistivity ~0.85 µΩ·m Resistance to electrical current

254 SMO Sheet ,Plate,coils Manufacturer - Types of 254 SMO Sheet ,Plate,coils

254 SMO Sheet ,Plate,coils supplier in Mumbai India

Sheet
Plate supplier in Mumbai India

Plate

Coils supplier in Mumbai India

Coils

Applications & Uses

  • 254 SMO Sheet ,Plate,coils used in Sugar Industry.
  • 254 SMO Sheet ,Plate,coils used in Power Industry.
  • 254 SMO Sheet ,Plate,coils used in ShipBuilding Industry.
  • 254 SMO Sheet ,Plate,coils used in Mechanical and Plant engineering.
  • 254 SMO Sheet ,Plate,coils used in Food, Beverage, and Dairy.
  • 254 SMO Sheet ,Plate,coils used in Oil and Gas Plant.
  • 254 SMO Sheet ,Plate,coils used in Process Instrumentation.
City we Supply 254 SMO Sheet ,Plate,coils:
Pune Mumbai Chennai Hyderabad Kolkata Bengaluru
Raipur Ahmedabad Jaipur Surat Salem Delhi
Bhubaneswar Tiruppur Sivakasi Jamnagar Thiruvananthapuram Rajahmundry
Bhiwandi Vijaywada Firozabad Bokaro Steel City Rajkot Bharuch
Panna Raipur Cochin Ludhiana Panipat Durgapur
Peenya Pimpri-Chinchwad Channapatna Kharagpur Nashik Bareilly
Varanasi Haldia Rourkela Bangalore Moradabad Indore
Patna Trivandrum Pithampur Dibrugarh Angul Gwalior
Coimbatore Kannur Nagpur Vadodara Rudrapur Bareilly
Agra Bhagalpur Thane Bhilai Pithampur Kanpur
Noida Bhopal Sri City Jamshedpur Hosdurg Lucknow

Countries we export 254 SMO Sheet ,Plate,coils worldwide - Sumer Metal Industries Private Limited

254 SMO Sheet ,Plate,coils are Exported by Sumer Metal Industries Private Limited to Europe, Africa, Asia, the United Arab Emirates, and other continents. There are a variety of high-quality 254 SMO Sheet ,Plate,coils Suppliers all around the world who offer items with full certifications and short turnaround times. We can help you get the greatest quality 254 SMO Sheet ,Plate,coils from any Pipe manufacturer in the world at the best price.

Countries We Supply Welded Pipes
Saudi Arabia Oman Kuwait Netherlands Iran
Bahrain Qatar UAE Africa China
Nigeria Mexico Canada Venezuela United Kingdom
United States South Africa Malaysia Bangladesh Turkey
Singapore Sri Lanka Australia Brazil Germany
France Italy South Korea Poland Belgium
