Inconel 718 Sheet ,Plate,coils Manufacturer in India

Inconel 718 Sheet ,Plate,coils Manufacturer, Supplier and Exporter in India

Inconel 718 Sheet ,Plate,coils, Inconel 718 Sheet ,Plate,coils Manufacturer, Inconel 718 Sheet ,Plate,coils Supplier and Exporter, Inconel 718 Sheet ,Plate,coils Exporter

Sumer Metal Industries Pvt. Ltd. is a reputed Indian manufacturer, supplier and exporter of premium Inconel 718 in sheet, plate, and coil formats. They deliver material certified to ASTM B 670 / ASME SB 670 (or B168/SB168) specifications, compliant with aerospace, chemical‑process and high‑temperature industrial requirements recommended under global norms. Formats available include hot‑ and cold‑rolled coils, plates, shim sheets, circles, blanks, strips and chequered plates, in thicknesses from 0.1 mm to 12 mm, widths up to 2500 mm or more, and lengths to customer‑specifications

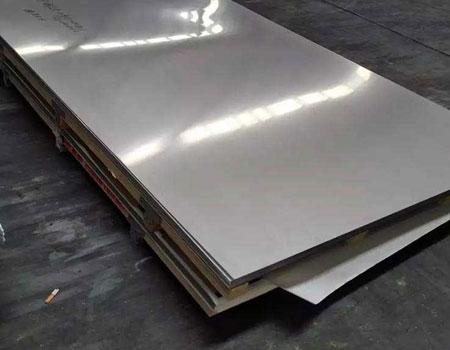

Inconel 718 Sheet ,Plate,coils

Inconel 718 Sheet, Plate & Coil are high-performance nickel-chromium-based alloy products that are renowned for their excellent strength, corrosion resistance, and weldability. These products are widely used in demanding industrial applications due to their exceptional mechanical properties at both high and low temperatures. Inconel 718 is a precipitation-hardening alloy, which means it gains additional strength through a heat-treatment process that forms intermetallic compounds such as gamma prime (γ') and gamma double-prime (γ''), making it ideal for high-stress environments.

Manufactured to international standards like ASTM B670 / ASME SB670, Inconel 718 sheets, plates, and coils are available in a range of thicknesses, widths, and lengths to suit diverse industrial needs. At Sumer Metal Industries Private Limited, these products are engineered with precision and quality, ensuring durability, surface finish, and tolerance control. As a trusted manufacturer, supplier, and exporter, the company serves both domestic and international markets across aerospace, power generation, oil & gas, petrochemicals, and marine sectors.

Inconel 718 Sheet ,Plate,coils Specifications

Property Details
Standard Specifications ASTM B670, ASTM B168, ASME SB670, ASME SB168
Material Grade Inconel 718 (UNS N07718 / Werkstoff Nr. 2.4668)
Form Available Sheets, Plates, Coils
Thickness Range 0.3 mm to 200 mm
Width Up to 2000 mm (custom sizes available)
Length Up to 6000 mm or as per customer requirement
Finish Types Hot Rolled (HR), Cold Rolled (CR), 2B, BA, No.4, No.8 (Mirror), PVC Coated
Hardness Annealed / Soft / Hard / Spring Hard / Quarter Hard / Half Hard
Delivery Condition Solution Annealed, Pickled, Bright Annealed, Cold Worked
Density 8.19 g/cm³
Melting Point ~1350°C (2460°F)
Manufacturing Standards ISO 9001:2015 Certified
Edge Condition Mill Edge, Slit Edge
Surface Protection PVC Coated (optional for coils/sheets)
Applications Aerospace, Gas Turbines, Nuclear, Marine, Chemical Processing, Oil & Gas

Chemical Composition of Inconel 718 Sheet ,Plate,coils

Element Content (% by weight)
Nickel (Ni) 50.0 – 55.0
Chromium (Cr) 17.0 – 21.0
Iron (Fe) Balance
Niobium (Nb) + Tantalum (Ta) 4.75 – 5.50
Molybdenum (Mo) 2.80 – 3.30
Titanium (Ti) 0.65 – 1.15
Aluminum (Al) 0.20 – 0.80
Cobalt (Co) ≤ 1.00
Manganese (Mn) ≤ 0.35
Silicon (Si) ≤ 0.35
Copper (Cu) ≤ 0.30
Carbon (C) ≤ 0.08
Phosphorus (P) ≤ 0.015
Sulfur (S) ≤ 0.015
Boron (B) ≤ 0.006

SS 904L is a super austenitic stainless steel with low carbon content and high levels of nickel, molybdenum, and copper, giving it outstanding resistance to sulfuric acid, chloride-induced pitting, and stress corrosion cracking. Sumer Metal’s 904L coils exhibit excellent formability, weldability, and durability in harsh and corrosive environments. These coils are available in hot rolled (HR) and cold rolled (CR) forms and are used in fabricating heat exchangers, tanks, piping systems, and structural components.

Mechanical Property of Inconel 718 Sheet ,Plate,coils

Property Typical Value
Density 8.19 g/cm³
Melting Point 1,330 – 1,365 °C (2,426 – 2,489 °F)
Tensile Strength ≥ 1,250 MPa (≈ 180,000 psi)
Yield Strength (0.2% offset) ≥ 1,030 MPa (≈ 150,000 psi)
Elongation in 50 mm ≥ 12 – 25% (depending on condition)
Hardness (Rockwell C) RC 36 – 44 (depending on heat treatment)
Modulus of Elasticity ~200 GPa (29 x 10⁶ psi)
Fatigue Strength ~480 MPa (at 10⁷ cycles, room temperature)
Impact Toughness Excellent, even at cryogenic temperatures
Creep Rupture Strength High (stable performance up to 700 °C or more)

Inconel 718 Sheet ,Plate,coils Manufacturer - Types of Inconel 718 Sheet ,Plate,coils

Inconel 718 Sheet ,Plate,coils supplier in Mumbai India

Sheet
Plate supplier in Mumbai India

Plate

Coils supplier in Mumbai India

Coils

Applications & Uses

  • Inconel 718 Sheet ,Plate,coils used in Sugar Industry.
  • Inconel 718 Sheet ,Plate,coils used in Power Industry.
  • Inconel 718 Sheet ,Plate,coils used in ShipBuilding Industry.
  • Inconel 718 Sheet ,Plate,coils used in Mechanical and Plant engineering.
  • Inconel 718 Sheet ,Plate,coils used in Food, Beverage, and Dairy.
  • Inconel 718 Sheet ,Plate,coils used in Oil and Gas Plant.
  • Inconel 718 Sheet ,Plate,coils used in Process Instrumentation.
City we Supply Inconel 718 Sheet ,Plate,coils:
Pune Mumbai Chennai Hyderabad Kolkata Bengaluru
Raipur Ahmedabad Jaipur Surat Salem Delhi
Bhubaneswar Tiruppur Sivakasi Jamnagar Thiruvananthapuram Rajahmundry
Bhiwandi Vijaywada Firozabad Bokaro Steel City Rajkot Bharuch
Panna Raipur Cochin Ludhiana Panipat Durgapur
Peenya Pimpri-Chinchwad Channapatna Kharagpur Nashik Bareilly
Varanasi Haldia Rourkela Bangalore Moradabad Indore
Patna Trivandrum Pithampur Dibrugarh Angul Gwalior
Coimbatore Kannur Nagpur Vadodara Rudrapur Bareilly
Agra Bhagalpur Thane Bhilai Pithampur Kanpur
Noida Bhopal Sri City Jamshedpur Hosdurg Lucknow

Countries we export Inconel 718 Sheet ,Plate,coils worldwide - Sumer Metal Industries Private Limited

Inconel 625 Sheets, Plates & Coils, produced by Sumer Metal Industries Private Limited, are premium-grade nickel‑chromium‑molybdenum‑niobium superalloy products designed to deliver exceptional strength, corrosion resistance, and oxidation stability even under extreme temperatures. With UNS designation N06625 and Werkstoff number 2.4856, they conform to international standards such as ASTM B443 / ASME SB443 for sheet and plate, ensuring consistent high quality across various forms and applications

Countries We Supply Welded Pipes
Saudi Arabia Oman Kuwait Netherlands Iran
Bahrain Qatar UAE Africa China
Nigeria Mexico Canada Venezuela United Kingdom
United States South Africa Malaysia Bangladesh Turkey
Singapore Sri Lanka Australia Brazil Germany
France Italy South Korea Poland Belgium
