Titanium Gr 5 Sheet ,Plate,coils Manufacturer in India

Titanium Gr 5 Sheet ,Plate,coils Manufacturer, Supplier and Exporter in India

Titanium Gr 5 Sheet ,Plate,coils, Titanium Gr 5 Sheet ,Plate,coils Manufacturer, Titanium Gr 5 Sheet ,Plate,coils Supplier and Exporter, Titanium Gr 5 Sheet ,Plate,coils Exporter

Titanium Grade 5 (Ti-6Al-4V / UNS R56400) is the most widely used titanium alloy in the world. Known as the “workhorse” of the titanium family, it consists of 6% aluminum and 4% vanadium, providing superior strength, light weight, corrosion resistance, and excellent heat resistance. These properties make it ideal for aerospace, medical, marine, chemical processing, and industrial applications requiring high strength-to-weight ratios and resistance to extreme conditions.

At Sumer Metal Industries Private Limited, we specialize in manufacturing, supplying, and exporting premium Titanium Gr 5 Sheets, Plates, and Coils in compliance with international standards such as ASTM B265, AMS 4911, and ASME SB-265. Our products are available in a variety of forms, dimensions, finishes, and tempers, offering our clients exceptional flexibility and reliability across high-performance applications.

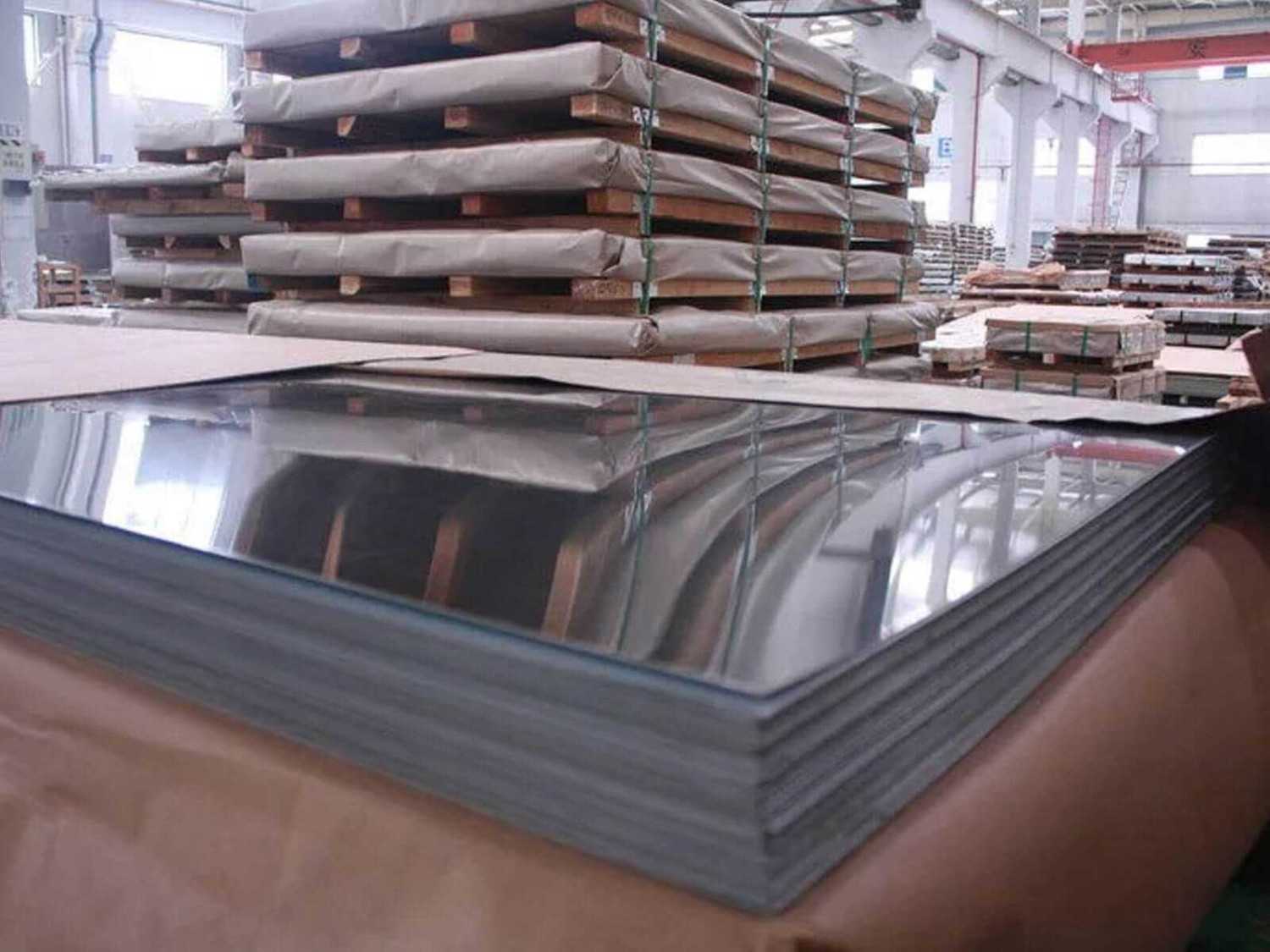

Titanium Gr 5 Sheet ,Plate,coils

Grade 5 titanium combines high tensile and yield strength with excellent corrosion resistance, particularly in chloride environments and high-temperature conditions. Our Titanium Grade 5 sheets and plates are widely used in aircraft structures, engine components, marine equipment, offshore oil rigs, heat exchangers, and surgical implants. The alloy’s strength and durability, even at temperatures up to 400°C (752°F), make it an excellent material for components subjected to extreme stress.

Titanium Gr 5 Coils are provided in precision-rolled formats suitable for continuous fabrication processes, forming, and cutting applications. These coils offer excellent surface quality and are often used in industries where consistent sheet feeding is necessary, such as automotive manufacturing, aerospace skin structures, and industrial tubing fabrication. They are available in both hot-rolled and cold-rolled finishes.

Titanium Gr 5 Sheet ,Plate,coils Specifications

Property Description
Grade Titanium Grade 5 (Ti-6Al-4V)
UNS Designation R56400
Standards ASTM B265, ASME SB-265, AMS 4911, ISO 5832-3
Forms Available Sheets, Plates, Coils, Strips, Shims
Thickness Range 0.5 mm to 100 mm
Width Range 1000 mm to 2500 mm
Length Up to 6000 mm or as per customer requirements
Finish Types HR (Hot Rolled), CR (Cold Rolled), Pickled, Polished
Delivery Condition Annealed (Mill Annealed), Stress Relieved, Hot Rolled

Chemical Composition of Titanium Gr 5 Sheet ,Plate,coils

Element Composition (%)
Titanium (Ti) Balance
Aluminum (Al) 5.5 – 6.75
Vanadium (V) 3.5 – 4.5
Iron (Fe) ≤ 0.40
Oxygen (O) ≤ 0.20
Carbon (C) ≤ 0.08
Nitrogen (N) ≤ 0.05
Hydrogen (H) ≤ 0.015

904L stainless steel flanges are extensively used in chemical processing plants, particularly in systems dealing with sulfuric acid and chloride-rich fluids, as well as in marine environments, pharmaceutical cleanrooms, food processing units, and desalination plants. Their reliability in resisting leaching, corrosion, and surface degradation makes them suitable for heat exchangers, pressure vessels, piping systems, reactors, and storage tanks. Their compatibility with both welded and bolted assemblies makes them a go-to choice in maintenance-intensive environments.

Mechanical Property of Titanium Gr 5 Sheet ,Plate,coils

Property Value
Tensile Strength (min) 895 MPa (130,000 psi)
Yield Strength (0.2% offset) 828 MPa (120,000 psi)
Elongation (in 50mm) ≥ 10%
Reduction of Area ≥ 25%
Hardness ~ 36 HRC / 349 HV
Density 4.43 g/cm³
Modulus of Elasticity 114 GPa
Operating Temperature Up to 400°C (752°F)

Titanium Gr 5 Sheet ,Plate,coils Manufacturer - Types of Titanium Gr 5 Sheet ,Plate,coils

Titanium Gr 5 Sheet ,Plate,coils supplier in Mumbai India

Sheet
Plate supplier in Mumbai India

Plate

Coils supplier in Mumbai India

Coils

Applications & Uses

  • Titanium Gr 5 Sheet ,Plate,coils used in Sugar Industry.
  • Titanium Gr 5 Sheet ,Plate,coils used in Power Industry.
  • Titanium Gr 5 Sheet ,Plate,coils used in ShipBuilding Industry.
  • Titanium Gr 5 Sheet ,Plate,coils used in Mechanical and Plant engineering.
  • Titanium Gr 5 Sheet ,Plate,coils used in Food, Beverage, and Dairy.
  • Titanium Gr 5 Sheet ,Plate,coils used in Oil and Gas Plant.
  • Titanium Gr 5 Sheet ,Plate,coils used in Process Instrumentation.
